Backstage

What is Backstage?

Backstage is an open platform for building developer portals.

The philosophy behind Backstage is simple: don't expose your engineers to the full complexity of all your infrastructure tooling and services -- hide it behind a consistent, centralized and delightful interface.

Overview

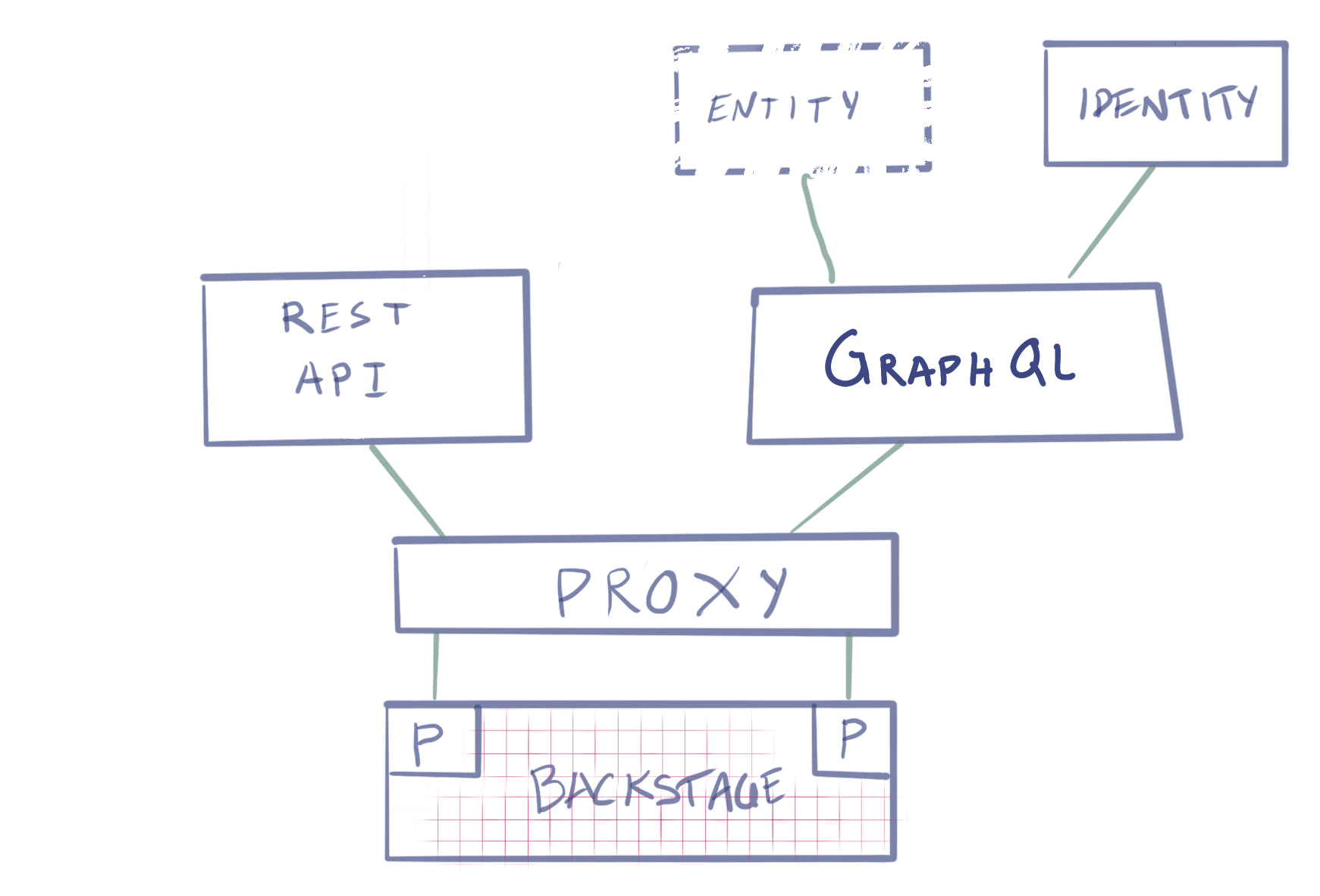

The Backstage platform consists of a number of different components:

frontend Main web application that users interact with. It's built up by a number of different Plugins. Plugins all use a common set of platform API's and reusable UI components. Each plugin is treated as a self-contained web app and can include almost any type of content.
backend GraphQL aggregation service that holds the model of your software ecosystem, including organisational information and what team owns what software. The backend also has a Plugin model for extending its graph.
proxy Terminates HTTPS and exposes any RESTful API to Plugins.
identity A backend service that holds your organisation's metadata.

Getting started

Install Dependencies

To run the frontend, you will need to have git, NodeJS, and yarn installed.

For running the backend, depending on your OS, you need Docker Desktop for Mac, Docker Desktop for Windows, or for Linux, docker and docker-compose.

The above dependencies are enough to run and work on the Backstage frontend packages. To develop backend services, there are some more tools to install, see backend/README.md. To update protobuf definitions, you will need another set of tools, see proto/README.md.

Running Locally

The full local system consists of a collection of backend services, as well as a web application. From the root of the project directory, run the following in a terminal to start up all backend services locally:

$ cd backend

$ docker-compose up --build

Once the backend services are up and running, open a separate terminal window and start the web app using the following commands from the project root:

$ cd frontend

$ yarn # may take a while

$ yarn start

The final yarn start command should open a local instance of Backstage in your browser, otherwise open one of the URLs printed in the terminal.

Plugins

Creating a Plugin

To create a new plugin, go to the frontend/ directory and run the following:

$ yarn && yarn create-plugin

This will prompt you to enter an ID for your plugin, and then create your plugin inside the packages/plugins/ directory. Note that the plugin will not yet be included in the app, to include it add the following for a plugin called my-plugin:

In "dependencies" inside packages/app/package.json add the following:

"@spotify-backstage/plugin-my-plugin": "0.0.0"

In packages/app/src/plugins.ts, add the following:

export { default as MyPlugin } from '@spotify-backstage/plugin-my-plugin';

To apply the above changes, go to the frontend/ directory and run:

$ yarn

Now start or restart yarn start, and you should be able to see the default page for your new plugin at localhost:3000/my-plugin.

Protobuf Definitions

The protobuf definitions are all found in the /proto folder in the project root. They are used to generate code for gRPC communication for both the frontend and backend. The generated code is checked into version control though, so unless you want to change the protobuf definitions you don't need to install any tooling.

Information about how to work with the protobuf definitions can be found inside proto/README.md.

Documentation

License

Licensed under the Apache License, Version 2.0: http://www.apache.org/licenses/LICENSE-2.0
